Push cores at Axial Seamount

At the end of the dive we deployed a "tephra collector" for Bill Chadwick to collect ash particles that might advect from the plume during the next eruption at Axial (and whatever else lands on it in between).

Push cores at Axial Seamount

45o 59.6′ N 129o 57.4′ W

After a long steam from Newport, Oregon, we arrived to Axial Seamount about midday. Although we only had time for a short ROV dive, it was a very important dive for some of the long-standing work we have been doing here. The primary objective of today’s dive was to collect a series of sediment push cores along a transect from the distal flank of the volcano to the summit. The goal was to determine whether or not a conspicuous green mud can be found in locations far from the summit. We have known for some time that this green mud occurs around the large summit caldera of Axial Seamount, but not until today did we know how far it extended away from the caldera.

This green mud contains unusual minerals formed by hydrothermal alteration that we typically do not see elsewhere on the mid-ocean ridge system aside from on top of large seamounts like Axial Volcano. We think the green mud formed deep in the volcano and erupted when the large summit caldera formed. We recovered several short push cores that indeed contained the green mud, but it was much thinner than in locations closer to the caldera, thus confirming our earlier hypothesis that this green mud likely originated from the caldera when it formed approximately a thousand years ago.

D878_02_20_02_29_sm

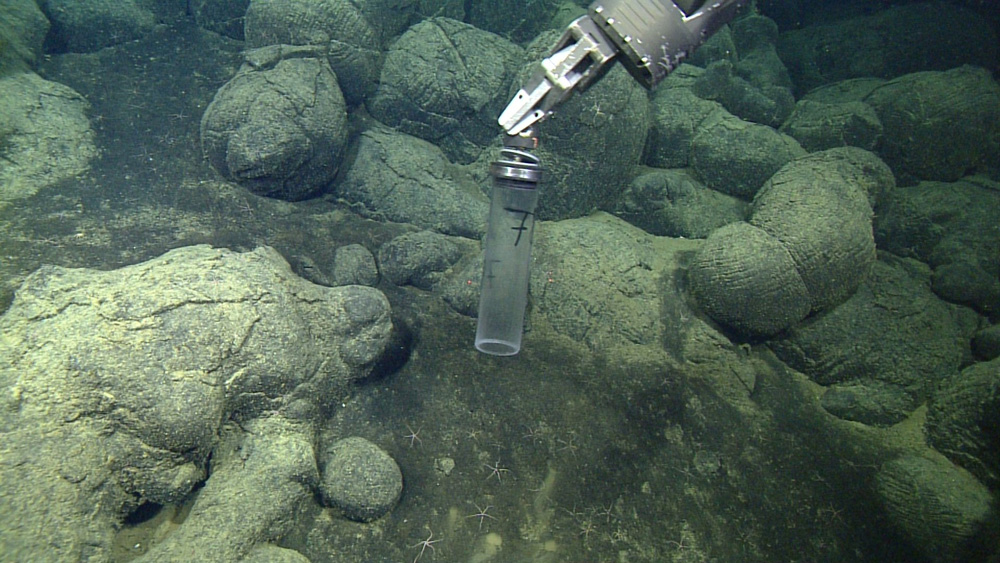

Push core held by the manipulator arm above glass-rich sediments (home to many brittle stars and burrowing worms). We will sieve foraminifera shells from the bottom layer of the core and radiocarbon date them to give us an approximate age for the underlying lava flow.
IMG_0034_core_sm

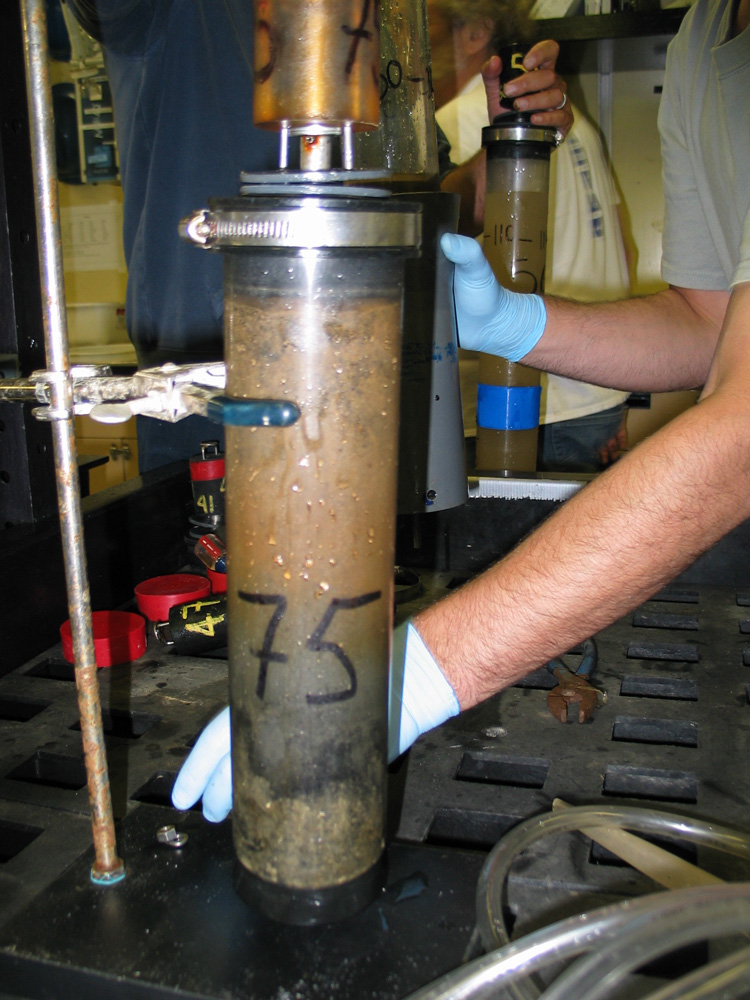

Sediment core with a thick layer of gray-green mud deep in the core, a black glassy layer below that, and a lighter-colored foraminifera-rich layer at the bottom.
A large crab (Macroregonia macrochira, about 35 cm across) is perched on a large lava pillow.
A large crab (Macroregonia macrochira, about 35 centimeters across) is perched on a large lava pillow.
At the end of the dive we deployed a
At the end of the dive we deployed a “tephra collector” for Bill Chadwick to collect ash particles that might advect from the plume during the next eruption at Axial Seamount (and whatever else lands on it in between).

—Ryan Portner

This is my first time at sea on a research cruise. I got to witness the ROV dive today, at a location where we were the first people to see and sample this part of Axial Seamount. My first watch in the control room during the dive consisted of keeping track of collected rocks, push cores, and the locations in which we collected them.

It was thrilling to be a part of the process; watching the ROV pilots at work was fascinating. Although the motion of the ocean has taken some getting used to, it’s very exciting and rather funny to stagger around with everyone trying to stay upright.

DSCN2239_Sasha_Beth
Sasha Belinsky and Beth Johnson measure and describe rocks that were collected during the ROV dive.

—Alexandra “Sasha” Belinsky
