Chinese team tests ocean-observatory equipment in Monterey Bay

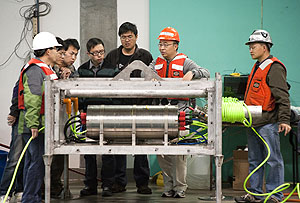

Members of the Chinese research team prepare the secondary junction box for their underwater observatory.

On April 21, 2011, after four years of planning, MBARI and a team of Chinese scientists and engineers installed a suite of ocean-observing instruments for testing in Monterey Bay. These instruments were hooked up to MBARI’s Monterey Accelerated Research System (MARS) cabled ocean observatory, about 35 kilometers (20 miles) from shore, in 900 meters of water. After several months of testing in Monterey Bay, components of this system will be installed on a long-term ocean observatory planned for the South China Sea.

The South China Sea observatory will be used to study marine ecosystems and biodiversity, tidal currents, earthquakes, and other seafloor phenomena. This project involves a number of Chinese research institutions and is supported by the Ministry of Science and Technology of the People’s Republic of China. It was initially proposed by a group of researchers from Tongji University, led by Huaiyang Zhou.

The Chinese test equipment in Monterey Bay includes a secondary junction box that routes data and electrical power from the main MARS science node to two instrument packages. All of the equipment is connected using seafloor cables that carry both data and power.

The Monterey Accelerated Research System (MARS) will allow scientists to perform long-term and real-time experiments 800 meters below the surface of Monterey Bay. The main MARS node (orange box with sloping sides) will connect to shore through a 51-km-long power and fibre-optic cable. MARS will serve as an engineering, science, and education test bed for even larger regional ocean observatories. (www.mbari.org/mars/)

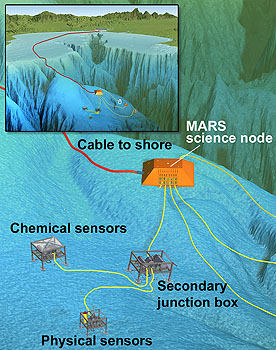

Simplified illustration (not to scale) showing the Chinese observatory experiment attached to the MARS science node. Image: David Fierstein/Kim Fulton-Bennett © MBARI

The installation of all this equipment on the deep seafloor required two research vessels, one remotely operated vehicle (ROV), and very delicate work by MBARI’s marine operations staff. To begin the installation, the crew of the research vessel Western Flyer lowered the lightest equipment package, containing current meters and related instruments, over the side of the ship, and allowed it to sink down to the seafloor. Then ROV pilots on board the research vessel Point Lobos flew ROV Ventana down to pick up the package and move it to an appropriate location near the MARS node.

Next came the most challenging stage—deploying the other two instrument packages, which were too heavy for ROV Ventana to pick up and move underwater. The crew on the Western Flyer lowered the first of these, the junction box, down to the seafloor on a wire. Then the ROV pilots flew ROV Ventana within about 15 meters of the box. Using the video feed from the ROV, the pilots directed the ship’s crew to move the Western Flyer (and the junction box) a few meters at a time until the junction box was in the right location. At that point, the junction box was lowered onto the seafloor.

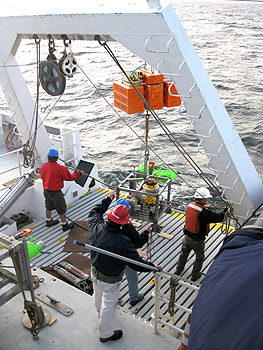

The crew of research vessel Western Flyer lower the current-meter package for the Chinese ocean observatory into Monterey Bay. © 2011 MBARI

This process was repeated for the chemical sensor instrument package. Throughout these two deployments, the ROV pilots had to be very careful to ensure that the tether for the ROV did not get tangled with the 900-meter-long wire coming down from the Western Flyer.

After all the instrument packages were placed on the seafloor, the pilots used ROV Ventana to unwrap a 40-meter-long undersea cable from the junction box and plug it into the MARS science node. Then they unwrapped similar cables from each of the instrument packages and connected them to the junction box. Amazingly, MBARI’s marine operations crew was able to both deploy the instruments and hook them up in a single day.

Within minutes of hooking up the instruments to the MARS science node, researchers on shore in Moss Landing were able to control their instruments and view the first data. They were excited to discover that all of the instruments survived the deployment process and appeared to be functioning well.

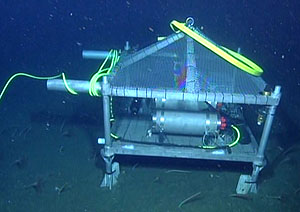

This frame grab from ROV video shows the seawater-chemistry instrument package that is part of the Chinese experiment on the MARS ocean observatory. The cable on the left connects to the secondary junction box. Image: © 2011 MBARI

The three instrument packages used in this experiment include a secondary junction box, a seawater chemistry monitoring system, and a system for monitoring currents and physical properties of seawater. The secondary junction box is attached to the MARS science node by a 40-meter-long cable on the seafloor, and serves a function similar to that of the MARS science node. It has 10 ports that can provide power and data for undersea experiments through separate seafloor cables.

The seawater-chemistry instrument package in this experiment measures seawater acidity as well as concentrations of chloride, sulfate, nitrate, oxygen, methane, and chlorophyll (an indicator of microscopic algae). The ocean-current package includes several types of current meters as well as instruments to measure water pressure, temperature, salinity, and turbidity.


The team of Chinese researchers who came to MBARI to install and configure the Chinese test observatory pose for a group portrait in front of the research vessel Western Flyer. Image courtesy of Xiaotong Peng, Tongji University.

The recently deployed experiments will remain on the MARS observatory for about six months. This will allow the Chinese researchers to test both the functionality and durability of their equipment.

The MARS ocean observatory was originally built as a facility for testing equipment that would be used in other deep-ocean observing systems in the United States and Canada. MBARI is happy to see that the capabilities of MARS are appreciated and utilized by researchers from other countries as well.
