Northern 2013 Expedition Equipment

ricketts_harbordive16

ROV Doc Ricketts

ROV Doc Ricketts is capable of diving to 4,000 meters (about 2.5 miles). The Western Flyer is the support vessel for Doc Ricketts and was designed with a center well whose floor can be opened to allow Doc Ricketts to be launched from within the ship into the water below.

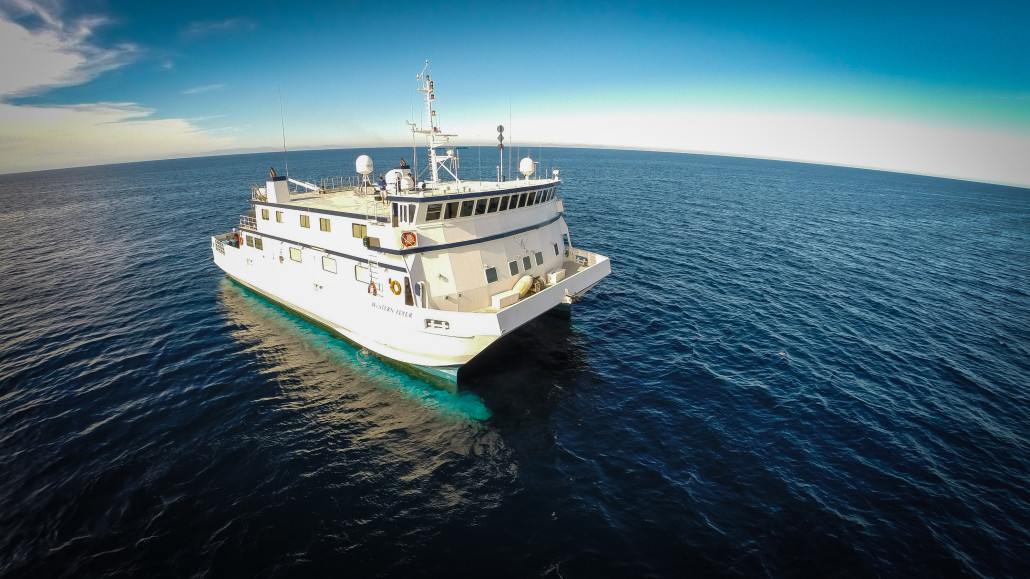

Flyer Arial 2

Research Vessel Western Flyer

R/V Western Flyer was designed and constructed for MBARI to serve as the support vessel for ROV Doc Ricketts. Her missions include the Monterey Bay as well as extended cruises to Hawaii, Gulf of California and the Pacific Northwest.
crusher200

Wax-tipped corer

This device is used to collect volcanic glass fragments from the surface of a flow. It is made of about 250kg of steel and is launched over the stern of the ship on a wire. Fragments of rock that break off of the lava flow on impact are trapped in wax-tipped cones mounted around the crusher. The wax is melted in the lab to liberate the rock particles for analysis.
vibracore200

Vibracores

Vibracoring is a common technique used to obtain samples from water-saturated sediment. These corers work by attaching a motor that induces high frequency vibrations in the core liner that in turn liquefies the sediment directly around the core cutter, enabling it to pass through the sediment with little resistance.
pushcore_200x138

Push cores

A push core looks like a clear plastic tube with a rubber handle on one end. Just as its name implies, the push core is pushed down into loose sediment using the ROV's manipulator arm.
