Images related to the MBARI News Release

MBARI sends underwater robot to study Deepwater Horizon spill

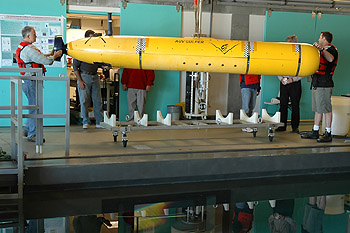

auv_gulper1-350

Image credit: Todd Walsh © 2007 MBARI

Researchers working on an autonomous underwater vehicle next to the test tank at the Monterey Bay Aquarium Research Institute (MBARI).


gulper_install4-250

Image credit: Todd Walsh © 2007 MBARI

Engineering technician Larry Bird installing gulper water samplers on the autonomous underwater vehicle at the Monterey Bay Aquarium Research Institute (MBARI).

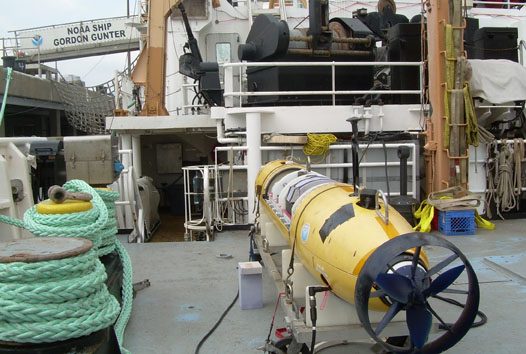

auv_on_gunter

Image credit: Yanwu Zhang © 2010 MBARI

An autonomous underwater vehicle from the Monterey Bay Aquarium Research Institute (MBARI) on the deck of the NOAA Ship Gordon Gunter in the Gulf of Mexico.


gulf-auv-launch-350

Image credit: Yanwu Zhang © 2010 MBARI

This photograph shows the autonomous underwater vehicle from the Monterey Bay Aquarium Research Institute (MBARI) being launched from the NOAA Ship Gordon Gunter in the Gulf of Mexico.


gulf-auv-yanwu-2-350

Image credit: Yanwu Zhang © 2010 MBARI

This photograph shows the autonomous underwater vehicle from the Monterey Bay Aquarium Research Institute (MBARI) being launched from the NOAA Ship Gordon Gunter in the Gulf of Mexico.

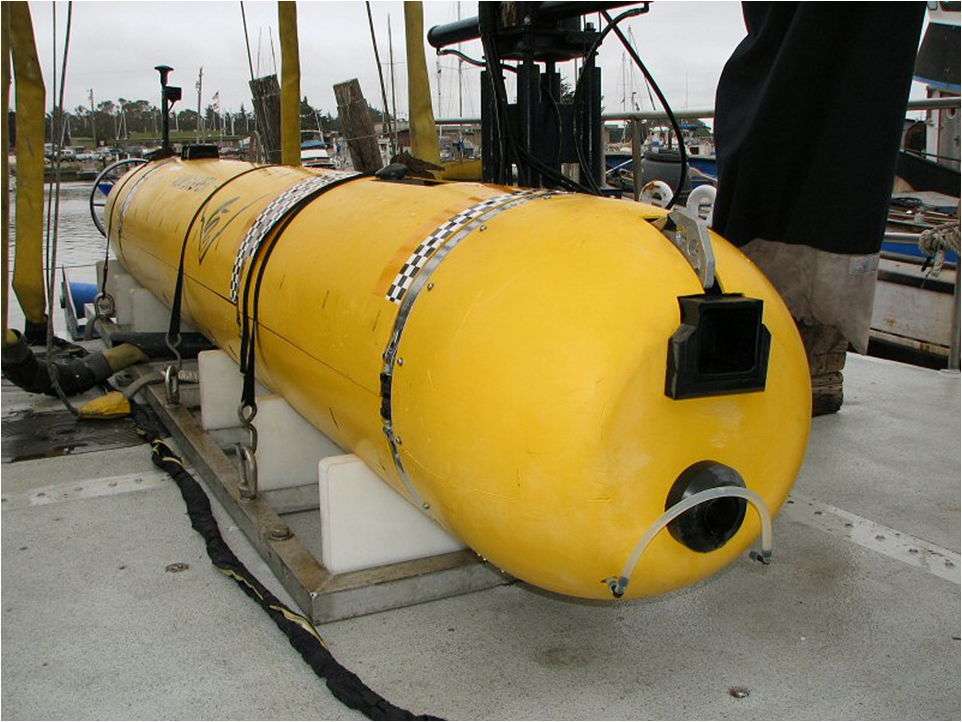

auv_on_deck

Image credit: © 2009 MBARI

The MBARI autonomous underwater vehicle (AUV) is equipped with 10 gulper water samplers and sensors to measure temperature, salinity, chlorophyll, particles and depth. This photograph shows the vehicle on board its host vessel, the R/V Zephyr in Moss Landing Harbor.

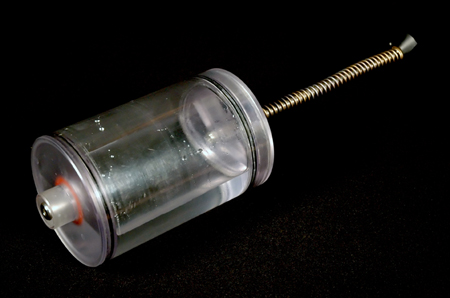

gulper8

Image credit: Todd Walsh © 2007 MBARI

This photograph shows a closeup view of an individual gulper water sampler. Ten such samplers, each with a capacity of 1.8 liters, are fitted into the center section of the AUV.


auv-plot-400

Image credit: John Ryan © 2009 MBARI

This illustration shows a cross section of 50 kilometers (30 miles) of ocean created by MBARI’s AUV off the coast of California. The three plots show salinity, chlorophyll (which indicates the presence of microscopic marine algae), and optical backscatter (which indicates the presence of small particles in the water). Higher concentrations are shown in red and orange, lower concentrations in blue and purple.
