Climate and Deep-Sea Communities 2013 Equipment

Flyer Arial 2

Research Vessel Western Flyer

R/V Western Flyer was designed and constructed for MBARI to serve as the support vessel for ROV Doc Ricketts. Her missions include the Monterey Bay as well as extended cruises to Hawaii, Gulf of California and the Pacific Northwest.
ricketts_harbordive16

ROV Doc Ricketts

ROV Doc Ricketts is capable of diving to 4,000 meters (about 2.5 miles). The Western Flyer is the support vessel for Doc Ricketts and was designed with a center well whose floor can be opened to allow Doc Ricketts to be launched from within the ship into the water below.

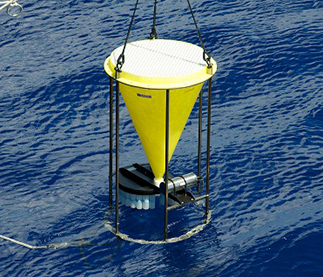

SedimentTrap

Sediment traps

Sediment traps collect the samples needed for the lab's measure of particulate organic carbon. The sample is split into portions for microscopy, pigment analysis and carbon analysis.
pushcore_200x138

Push cores

A push core looks like a clear plastic tube with a rubber handle on one end. Just as its name implies, the push core is pushed down into loose sediment using the ROV's manipulator arm.

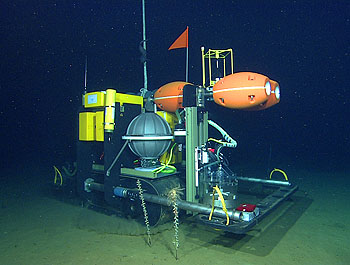

The benthic rover during a test dive in January 2007.

Benthic Rover

The Benthic Rover autonomously transits the seafloor taking measurements of sediment community oxygen consumption, which the lab uses to calculate organic carbon demand.
CameraTripod

Time-lapse camera mooring

The time-lapse camera consists of a Benthos 377 camera mounted on a titanium frame at an angle of 31 degrees from horizontal with the lens approximately two meters above the seafloor. Up to 3,500 images can be collected in 4.6 months.
